Smith machine: what it actually does and when it's worth it

You are standing in front of a Smith machine at the gym, or working out whether one fits in the garage, and the question is the same either way: does it replace a barbell, or is it just an expensive rack? It does not replace a barbell. But it does a few things a free bar cannot, and for some people those things are worth the money.

What the machine actually does

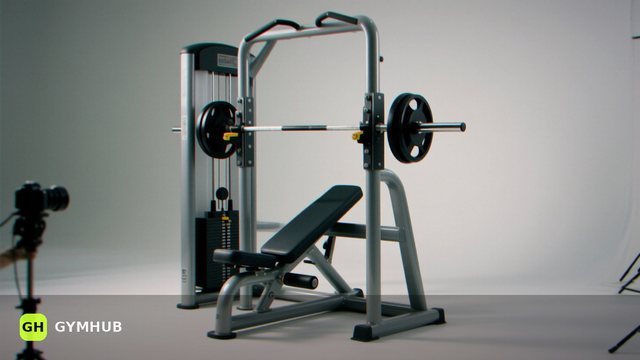

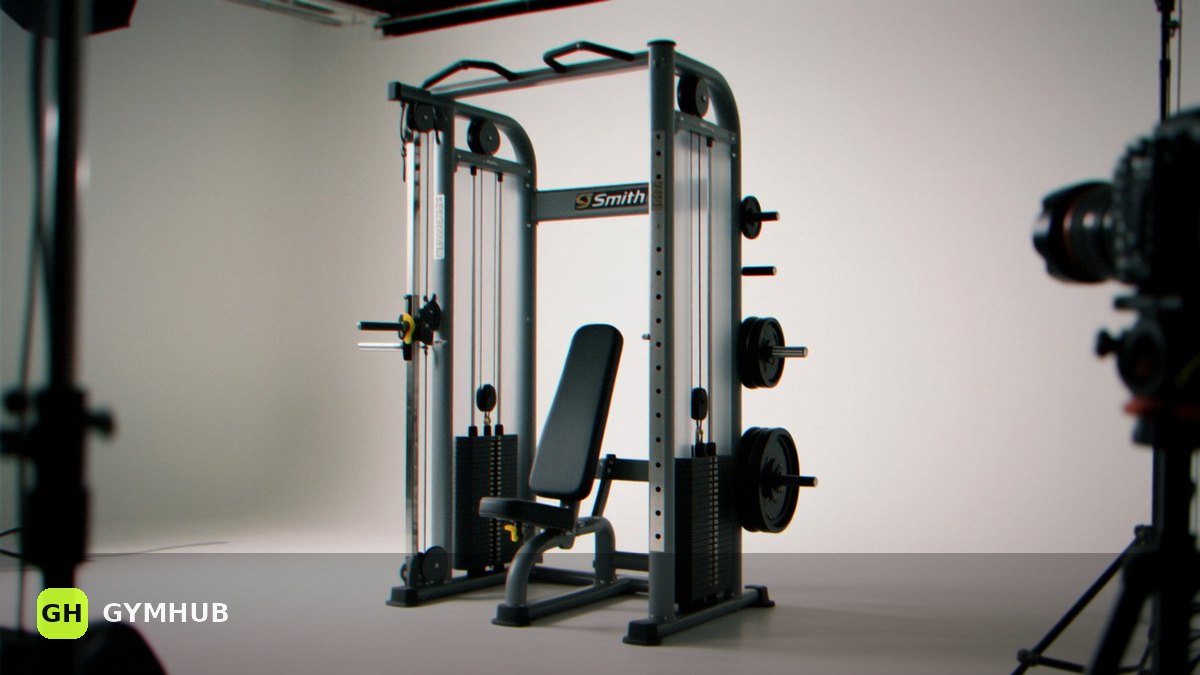

The bar is locked onto two rails and travels along one path only — vertical, or slightly angled, usually somewhere between 5 and 12 degrees on angled models. You control up and down, nothing else. The sideways stabilising work that a dozen smaller muscles handle under a free bar is taken over by the frame.

Everything else follows from that. You can push closer to failure without a spotter, because a twist of the wrist parks the bar at any height. You can hold body positions you could never balance with a free bar — feet set ahead of your hips in a squat, for instance. And repeating the same movement week after week gets easier.

The trade is that the machine picks the path, not you. If your build and foot position do not match that line, part of the load ends up in a knee, a hip or a shoulder instead of the muscle. So a Smith is not automatically safer than a barbell: it is safer than getting pinned under a load, and riskier if you grind week after week into a path that does not suit you.

For muscle growth it works perfectly well. For maximal strength, and for technique you want to carry over to free weights, the return is smaller — the points in the guide to learning the squat from scratch still apply.

What one of these has to have

• Adjustable safety stops. Not just hooks to rack on, but lower stops you set at a depth the bar cannot pass. Without them you have bought a rack with rails, not safety.
• Closely spaced hooks. Slots every 5 to 8 centimetres mean you can find the right height for pressing and for squatting. Slots every 15 centimetres mean choosing between too high and too low forever.
• A base that stays put. The frame needs lower cross members or bolt holes for the floor. A narrow footprint under a tall frame gets unpleasant as soon as the sets get heavy.
• A stated counterbalance. An empty Smith bar rarely weighs 20 kilograms; with the counterweight it often feels like 5 to 15. The manufacturer should print that figure.
• Enough room between the rails. A bench and your shoulders both have to fit inside without clipping the uprights.

The specs that matter, and what each one means

The glide system (there is no motor here)

A Smith machine has no motor, so what motor power is on a treadmill, the glide system is here. Two options: plastic or bronze bushings, or linear bearings. Bearings run smooth and quiet and cost more; bushings are cheaper and want occasional lubrication. More important than either is a rail that is straight and unscored — along with cables and bearings it is one of the parts that fails first on home gym kit.

Load rating

Stated ratings run from roughly 150 to 350 kilograms, but the number is not comparable across brands. Some count only plates on the bar, some plates plus lifter, some a static load with no movement. A workable rule: take the heaviest load you expect to handle in two or three years, double it, and want the rating above that.

Footprint and height

Frames are typically 210 to 230 centimetres tall, 120 to 150 wide and 100 to 180 deep. Leave 10 to 15 centimetres of ceiling above the frame, and more if there is a pull-up bar on top and you intend to use it. With a low ceiling, look first at the options in the piece on choosing and mounting a pull-up bar and at a shorter rack.

Steel and build

A 50x50 millimetre profile with a 2 millimetre wall is the floor for home use; 60x60 or 75x75 with a 2.5 to 3 millimetre wall is what gyms run. Welded joints at the load-bearing corners are stiffer than bolted ones, but a bolted frame comes through a doorway in pieces. Powder coat outlasts paint.

Bar angle

Vertical models are neutral and simpler to set up. Angled ones give a path closer to a natural press or squat, but you have to face the right way — turned around, the movement makes no sense.

Realistic space and budget

Allow 4 to 6 square metres for the machine plus room to work: the frame itself, half a metre either side for plates, and at least a metre in front. The unit weighs 80 to 200 kilograms, so once it is built it stays where it is. The floor underneath deserves rubber tiles, for noise as much as for the screed.

Money is easiest to think about as ratios, since prices differ from market to market. A basic home Smith costs roughly what a decent power rack costs, and a commercial build with linear bearings and attachments several times that. The spread comes down to steel thickness, glide type, chrome, and whether the frame includes pulleys, a pull-up bar and plate storage.

Then add what people forget: plates, a bench, flooring, and delivery that includes carrying it inside. For a home setup that often matches the price of the frame. If you are buying a bench alongside it, read up on picking incline, load rating and stability first, because a wobbly bench cancels out the stability you paid for.

Common buying mistakes

• Making it your first big purchase. With an empty room, a rack with safety arms and a barbell buy you more exercises per pound.
• Measuring the ceiling with no margin. A 220 centimetre frame does not fit a 220 centimetre room, and your head does not fit under the pull-up bar either.
• Logging the bar as 20 kilograms. The counterweight makes your training log wrong and your progression plan fall apart; the piece on adding weight without stalling covers how to keep it honest.
• Treating stated load ratings as one measure. They are not.
• Buying for safety, then never setting the stops. Lower stops left on the floor protect nobody.
• Ignoring spares. Ask whether bushings, bearings and cables will still be available in five years.

Who it suits, and who it does not

It earns its place if you train alone and want hard sets close to failure without a spotter; if muscle size is the main goal; if you like split squats, seated shoulder presses, calf raises and hip thrusts, where a fixed path genuinely helps; or if you are coming back from a break and want a controlled movement.

It does not if space is tight, if you are chasing strength in the squat, deadlift and bench press, if you play a sport that demands stabilising work, or if you are a complete beginner still learning to hold a bar. In those cases the same money does more as a rack, a bar and plates.

When to see a doctor

If a set leaves you with sharp, pinpoint pain in a shoulder, knee or lower back that has not settled after a few days, if you get numbness or weakness down an arm or leg, or if a joint swells, stop that movement and see a doctor or physiotherapist. A fixed path can hide a poor set-up until the damage adds up.

In short

A Smith machine removes the balancing job and lets you train close to failure on your own — that is its real value. Look for adjustable lower stops, closely spaced hooks, a stated counterbalance, at least a 50x50 millimetre profile and ceiling height with margin. Budget 4 to 6 square metres and include plates and a bench in the cost. Good tool for size; not a substitute for barbell technique or strength.
