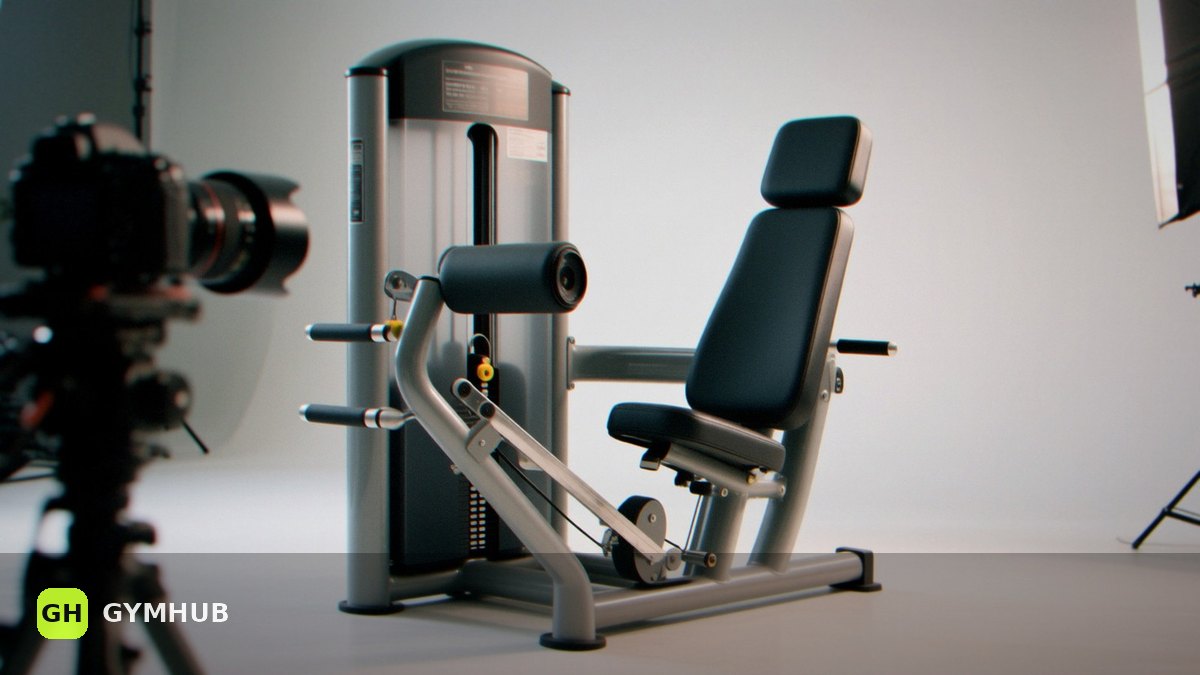

Leg extension and leg curl machine: what it is actually for

The question that comes up most often about this machine is simple: why bother, when you already squat, deadlift and press? The short answer is that these two movements finish a job the big compound lifts leave half done. The longer answer decides whether you hand over serious money and roughly three square metres of floor for it.

What it actually does

Knee extension is the one common exercise where the quadriceps work on their own, with no help from the hips and back. When you squat, the amount of work your quads get is capped by what your spine and your technique will tolerate that day. On the machine that cap disappears, so you can add quad volume without adding fatigue to your lower back.

The leg curl covers an even bigger gap. Your hamstrings do two jobs: they extend the hip and they bend the knee. Squats and the leg press mostly use them as stabilisers, Romanian deadlifts load them as hip extensors, and loaded knee flexion barely exists anywhere else apart from this machine or a Nordic curl.

The third benefit is practical. Both movements are technically easy, both work well one leg at a time, and both are easy to dose. That is why they show up in knee rehab, and why they suit people who cannot or will not put a bar on their back.

What it does not do: it does not replace squatting or deadlifting, it burns very little, and it does not protect your knee by itself. It is a tool for adding volume to two muscle groups. Nothing more, nothing less.

What the machine genuinely has to have

Everything else is negotiable. These are not:

• An adjustable backrest. Without it your knee will not sit on the machine's axis, your hip slides forward, and part of the load ends up in your lower back.
• A visible pivot point. Decent machines mark the axle or leave it in plain sight, so lining yourself up takes five seconds instead of guesswork.
• A lower pad that adjusts for shin length. The pad belongs just above the ankle. If it lands mid-calf or on your foot, the lever is working against your knee.
• A thigh pad that locks down for seated curls. Without it your hip lifts on every rep and the exercise stops meaning much.
• Handles and a stable base. If the frame rocks at your working weight, you will quietly train lighter than you can.

The specs that matter and what each one tells you

Type of resistance

There are three families. A pin-loaded weight stack changes in a second and suits training close to failure; 5 kg increments are common, 2.5 kg increments are better, and small add-on magnets of 0.5 to 2.5 kg handle the rest. Plate-loaded versions cost less per kilo and are easier to move, but you spend your session loading and stripping. Band or hydraulic units take the least space and money, but the resistance cannot be measured or tracked properly, and you outgrow them fast.

The resistance curve

On a plain lever, resistance peaks when your shin is horizontal and all but vanishes at the end of the range. Machines with a cam or an offset pulley even that out, so the finish of the rep stays loaded too. It is not decisive for a casual trainee, but you notice it inside a set of twelve.

Adjustability and size range

Look for five to eight positions on the backrest and the lower pad. Check that it works for someone of 160 cm and someone of 195 cm if more than one person in the house will use it. The test is quick: sit down, knee on the axis, back supported, pad above the ankle, and none of it propped up with cushions or a folded towel.

Frame and materials

The frame is usually square steel tube. Home machines tend to sit around 40 to 50 mm, semi-commercial ones around 50 to 75 mm, with wall thickness of two to three millimetres. Welded main joints outlast joints you bolt together yourself, and powder coating handles sweat far better than paint.

The parts that fail first

Sealed bearings on the pivot run quietly for years; plastic bushings are cheaper and develop play sooner. Cables should be coated and run over nylon pulleys. Judge upholstery by the stitching and foam by density — five to eight centimetres of firm foam will not collapse in a season.

Stack weight and machine weight

Home stacks usually run from 50 to 100 kg, semi-commercial ones from 90 to 130 kg. For most people that is plenty, since working weights on a leg curl rarely climb very high. The increment matters more than the maximum. The machine itself weighs anywhere from 80 to 250 kg, which is a question for your stairs, doorways and floor rather than your training.

How much space and money it realistically takes

Footprints are usually 1.2 to 1.8 m long and 0.7 to 1.1 m wide. Add 60 to 70 cm at the side for getting in, out and turning around on combo units. Budget 2.5 to 3.5 square metres permanently, because nobody shifts one of these between sessions.

On price, the honest way to talk is in ratios. A bench attachment is the cheapest option; a standalone home machine with a stack costs several times that; a semi-commercial unit runs two to three times a home one, and a new commercial machine roughly as much again above that. The spread comes from stack weight, bearings, number of adjustments, upholstery quality and warranty length. Add delivery, which on a 200 kg machine can eat a real slice of the budget. A used commercial unit is often the better buy than a new home one, provided you have a way to move it.

Common buying mistakes

• Comparing machines by maximum stack weight instead of by increment and adjustability.
• Buying extension only because it is cheaper. The hamstring side is the half that justifies the purchase, and it ties directly into what genuinely helps the knee.
• Not measuring the doorway, the stairwell and the ceiling height.
• Buying it before the basics. If this is your first big purchase, a cable crossover or functional trainer gives far more exercises per square metre.
• A bench attachment with no thigh restraint, where the leg curl turns into a hip lift.
• Testing the machine at 20 kg. Try it at the weight you will actually use — that is when the rocking and the squeaking show up.

Who it pays off for, and who it does not

It pays off in a home gym of fifteen square metres or more that already has a bar, a rack and a bench; for runners and anyone playing sprinting sports, where the hamstring is the weak point; for people returning from a knee injury with a plan from a professional; and for anyone adjusting training to their age, where a sensible approach after fifty means putting load on the muscle rather than the spine.

It does not pay off for a beginner in the first couple of years, since the same money buys far more in a bar and plates. Nor in a flat with four to six square metres to train in, or for someone doing two full-body sessions a week. In those cases Nordic curls, floor sliders and bands cover most of the ground for very little.

When to see a doctor

If the knee swells after training, locks, or gives way under you, if pain lasts longer than two or three weeks or wakes you at night, no machine choice fixes that. After ligament or meniscus surgery the rules for loaded knee extension are specific, and they come from the physiotherapist running your rehab, not from whoever is selling the equipment.

In short

The machine exists to give your quads volume without tiring your back, and to give your hamstrings the knee flexion they get almost nowhere else. Judge it on adjustability, pivot alignment, thigh restraint and stack increments before you look at maximum weight. Plan for about three square metres, price it by the stack, the bearings and the warranty, and buy it only once your gym already has the basics covered.
