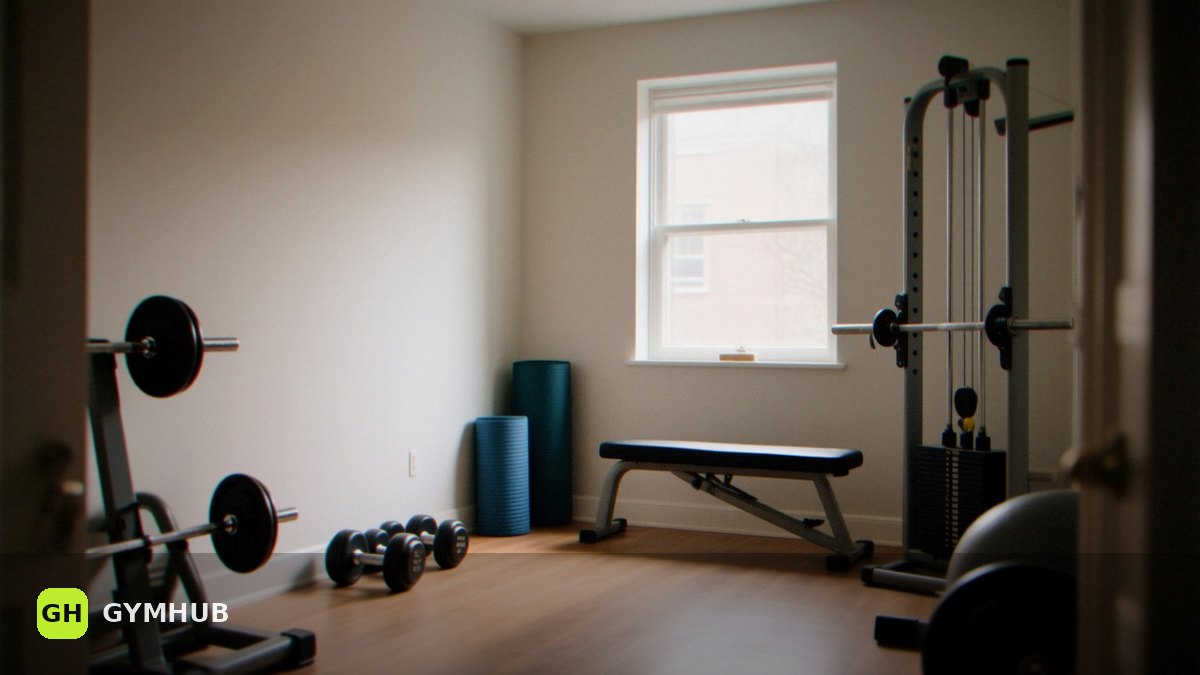

How much space a home gym really needs, in three dimensions

How many square metres, how much ceiling height and what share of the budget a home gym really needs, broken down by equipment level, plus the costly mistakes.

Measure the room before you choose a rack or a treadmill — and measure more than the floor. Most home gyms fail not because someone lost interest, but because the kit physically does not work where it was put: the bar hits a wardrobe, the treadmill has no run-off behind it, the ceiling stops any overhead pressing.

The good news is that the floor area needed is smaller than most people assume. The bad news is that it is not measured in square metres alone, but in three dimensions plus the zone your body moves through.

What the kit genuinely has to do in a small room

When space is tight, some features move from nice-to-have into non-negotiable, and others drop away entirely.

Stability without leaning on a wall. A frame that shifts under load or wobbles when you unrack is not a flat solution. A wide base, or the option to bolt it down, matters more than the number of attachments.
A stated load rating. If the manufacturer does not publish one, assume it is low.
Adjustability. A bench that goes from flat to roughly 80 degrees replaces two benches and saves at least a square metre. Adjustable dumbbells replace a whole rack of fixed pairs.
The option to move or fold it if the room has a second job. Wheels at one end, and a weight you can tip on your own, change everything in daily use.
Headroom for progress. Kit that suits you today will be light in six months. A system you can add kilograms to beats a closed set.

The specifications that matter and what each one means

Footprint versus working zone

The footprint is what the spec sheet gives you: length by width. The working zone is that footprint plus the space you move through. On a rowing machine the difference is about half a metre; on a treadmill it is a metre behind; on a rack with a barbell it is close to double the frame itself.

A workable rule: take the footprint, add 60 cm on the side you step off, and 100 cm in front or behind wherever the body travels.

Static and dynamic load ratings

The static rating is what the frame holds when the load sits still. The dynamic rating is what it holds when a loaded bar drops onto the safeties. The dynamic figure is always lower and usually goes unpublished, so leave yourself at least 50 per cent headroom above your heaviest planned load.

Materials and build

On steel frames, the two numbers that matter are the tube dimension and the wall thickness. Thinner, narrower tube is cheaper and lighter, but it flexes sooner and rings louder. A powder-coated finish handles sweat better than paint. On weights, cast iron plates are the cheapest per kilogram and the thinnest on the sleeve; rubber-coated plates are quieter and kinder to the floor, but take up noticeably more room on the bar and in storage.

Motor rating and belt area on cardio machines

On a treadmill, read the continuous motor rating rather than the peak figure — peak is a marketing number the motor holds only briefly. Running rather than walking pushes the requirement into whole kilowatts, and it rises with the user's weight and speed. The second number is the running surface: a shorter, narrower belt is cheaper and smaller, but it cramps your stride once the pace picks up. If you are weighing a treadmill against a bike or a rower, the space and noise trade-offs are worked through in the piece on home cardio in a small flat.

Height, the measurement people skip

A standing overhead press finishes with the bar at roughly 230 cm for someone around 180 cm tall. Add 20–30 mm of rubber flooring and a light fitting, and a 250 cm ceiling is the practical limit, with 260 cm and up genuinely comfortable. A pull-up bar sits at about 220 cm and wants another 25–30 cm of clearance above your head.

How much floor space you actually need

These are working zones — the area the kit occupies and the area you move in. Furniture and walkways sit on top of this.

Mat, resistance bands, one pair of dumbbells: 3–4 m², 220 cm of height. Enough for press-ups, lunges, dumbbell deadlifts and band work.
Adjustable dumbbells and an adjustable bench: 5–6 m². The bench is 120–140 cm long and needs at least 60 cm clear on each side for your arms and for getting up.
Barbell, rack and bench: 8–10 m² for the zone, 12 m² to be comfortable. The bar is around 220 cm long, so you need a wall run of 260–280 cm. The rack is 100–130 cm deep, plus 80–100 cm in front of it to walk the bar out.
Plate storage: 0.5–1 m². Plates left flat on the floor are both a hazard and lost area.
Cardio: a treadmill wants 180–200 × 80–90 cm plus a clear metre of run-off behind it. A rower is 240–250 cm long and needs another half metre. An exercise bike is the smallest of the three at roughly 120 × 60 cm.

So: 4 m² buys you serious training without a barbell, 6 m² covers full dumbbell work, and around 10 m² gives you a complete rack setup. How that is laid out room by room, and what goes in first, is covered in the guide to a small home gym: kit, space and buying order.

What it costs, in proportions

Prices vary far too much between markets for a figure to help, but the split within a budget holds up well enough to plan around.

Weights, whether plates or dumbbells: 40–60% of the total. This is where most of the money goes and where cutting corners hurts soonest.
Frame and bench: 25–35%. The range tracks steel thickness, whether it can be anchored, and whether there is a pulley.
Flooring: 10–15%. Almost everyone forgets it, and without it both the equipment and the slab suffer. Thickness and build-up are set out in the piece on gym flooring that takes weight.
Small items — plate tree, chalk, timer, extension lead: around 5%.

Cost per kilogram drives the weights budget, and it climbs with rubber coating, with adjustable mechanisms, and with fewer pieces in a set. Adjustable dumbbells cost more per kilogram, but you are buying back floor space. Buying used cuts the most on steel and cast iron and the least on electronics and cables.

Where people go wrong

Measuring the footprint instead of the working zone. The machine fits; the training does not.
Forgetting the route into the room. Doors are often 70–80 cm, stair turns tighter still, and rack uprights ship in boxes over 200 cm long.
Buying cardio first. A treadmill eats the most floor area and turns into a clothes rail fastest.
Starting too light. A pair of 10 kg dumbbells stops being challenging within three to six months.
Underestimating the ceiling. Overhead pressing and pull-ups leave no room to improvise.
Ignoring noise. In a flat, the type of weights and flooring matters more than the hour you train.
Leaving nowhere to stand. You need half a square metre where you do nothing but breathe between sets.

Who it pays off for

It pays off if you train three or more times a week and have done for over a year, if the gym is more than 20 minutes away each way, if you work shifts or have small children, and if your training is built on basic barbell and dumbbell movements — the sort of programme laid out in the guide to the bench press and its squat equivalent.

It does not pay off if you want the variety of machines that simply will not fit at home, if you have a 220 cm ceiling and ambitions to press overhead, or if you do not yet know whether you will stay consistent. In that last case, three months with bands and one pair of dumbbells is a far cheaper test than a full kit-out.

When to see a doctor

Training at home means nobody is there to lift a bar off your chest, so safety arms or pins count as equipment rather than an accessory. Stop and get checked if effort brings on chest pain or pressure, dizziness or fainting, if joint pain lasts longer than two weeks, or if you have known heart disease or high blood pressure and are only now returning to training.

In short

Measure three dimensions and the working zone, not just the floor.
4 m² gives real training without a barbell, 6 m² with dumbbells and a bench, around 10 m² with a rack.
250 cm of ceiling is the limit for overhead work; 260 cm and up is comfortable.
Weights take the largest share of the budget; flooring is what gets forgotten.
Check doorways and stairs before you order anything.
If you are unsure about consistency, run a three-month test with minimal kit.
